Two-piece flanged ball valve Ex

Two-piece flanged ball valve Ex

Two-piece flanged ball valve Ex

Body construction: DN 15, DN 300
Working pressure: PN 16/40
Working temperature: -20 to 200 °C
Tightness: Class A
Construction according to: EN 12516-1
Marking according to: IN 19
Connection parameters: RF flanges according to ISO PN40 to DN50, ISO PN16 above DN50, RF flanges according to EN 1092-1 PN16/40
ATEX: group II category 2G/2D Zone 1 and 21, Zone 2 and 22
Materials: Telo – ASTM A216 WCB, resp. ASTM A351 CF8M, Ball – ASTM A351 CF8M, Seal - PTFE TFM 1600 (PMD FF), Shaft seal – PTFE with 25% glass
Leak test: EN 12266-1, API 598, table.6
Fire safe according to: DN150 ISO API607

Hi, my name is Marko. I am ready to assist you.

Ing. Marko Štofan

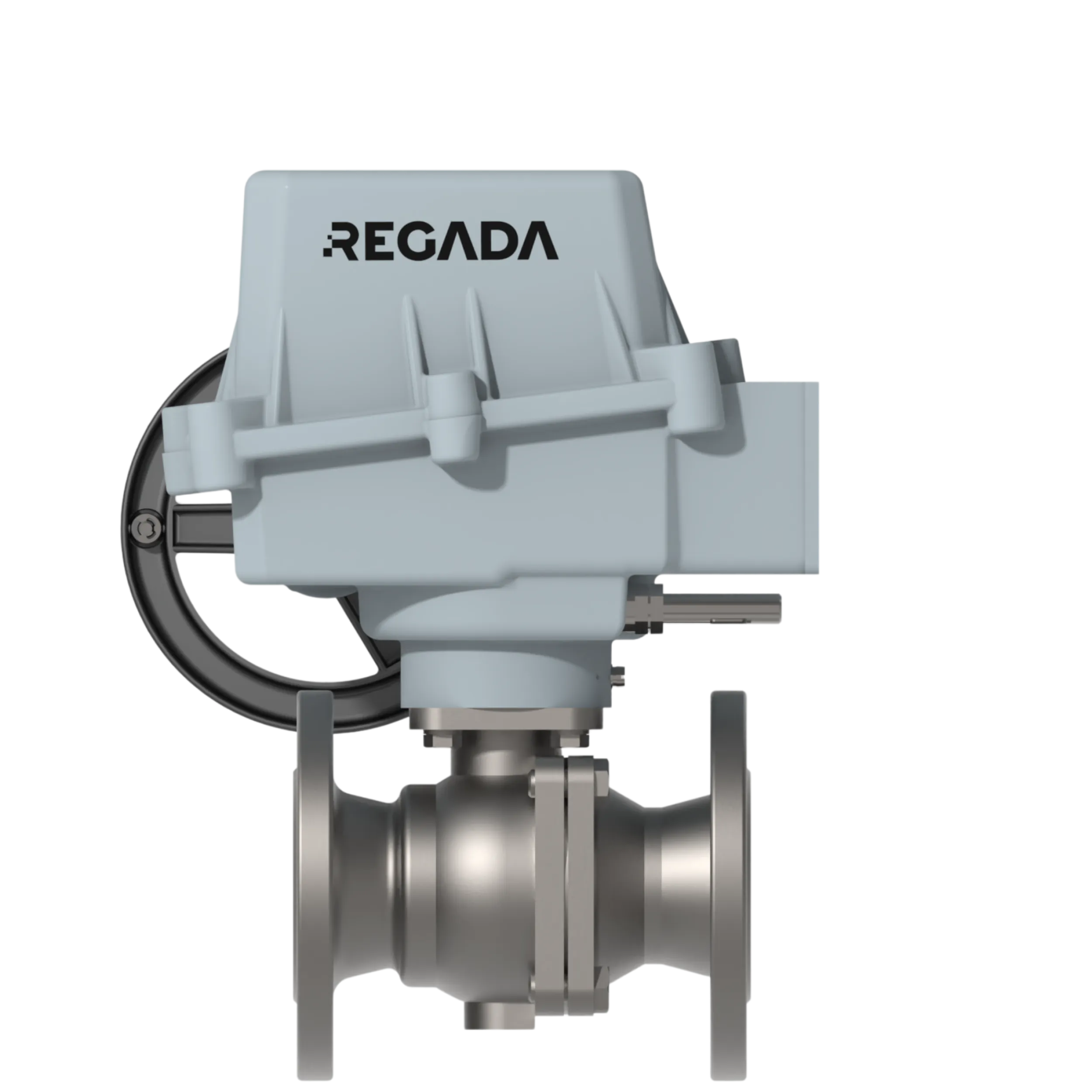

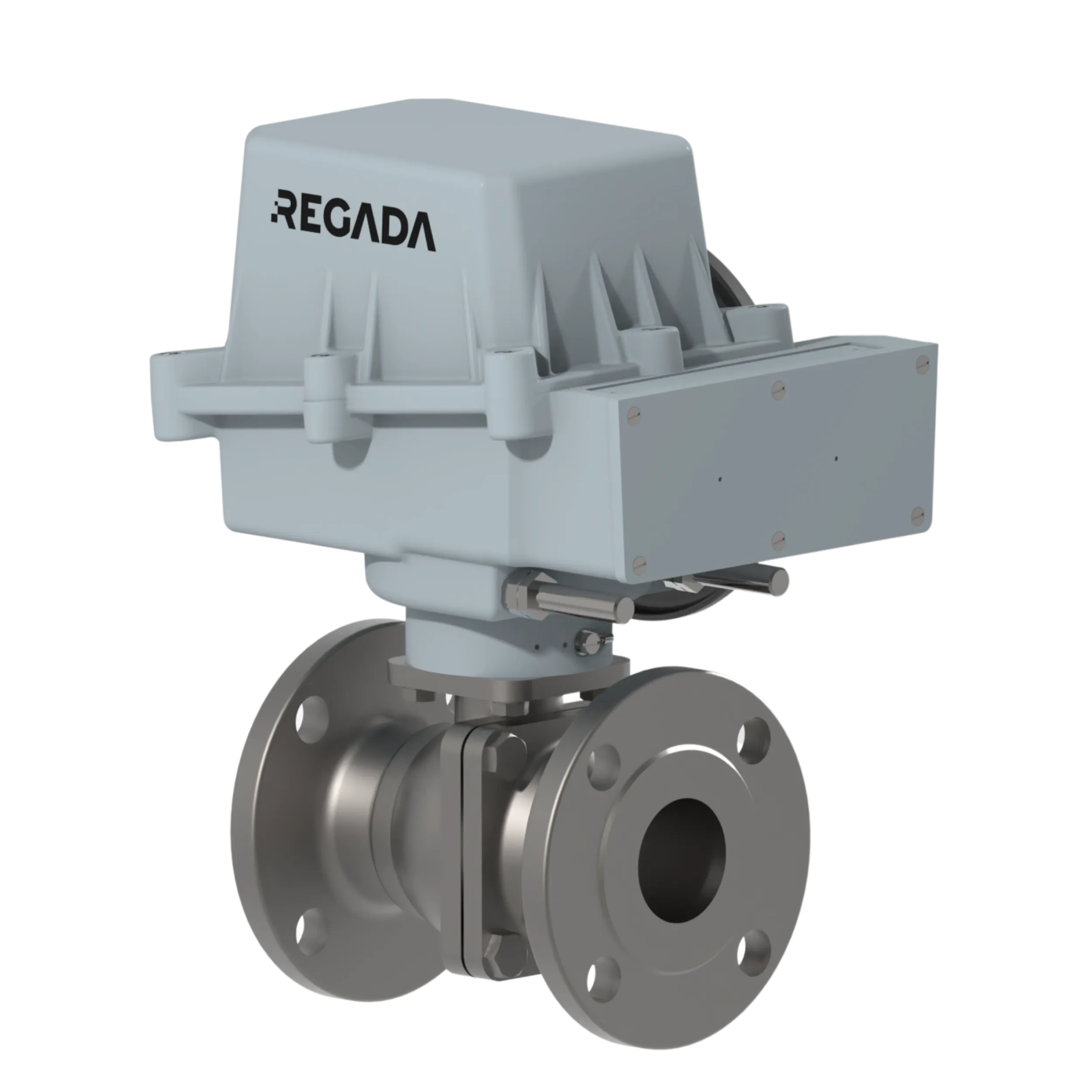

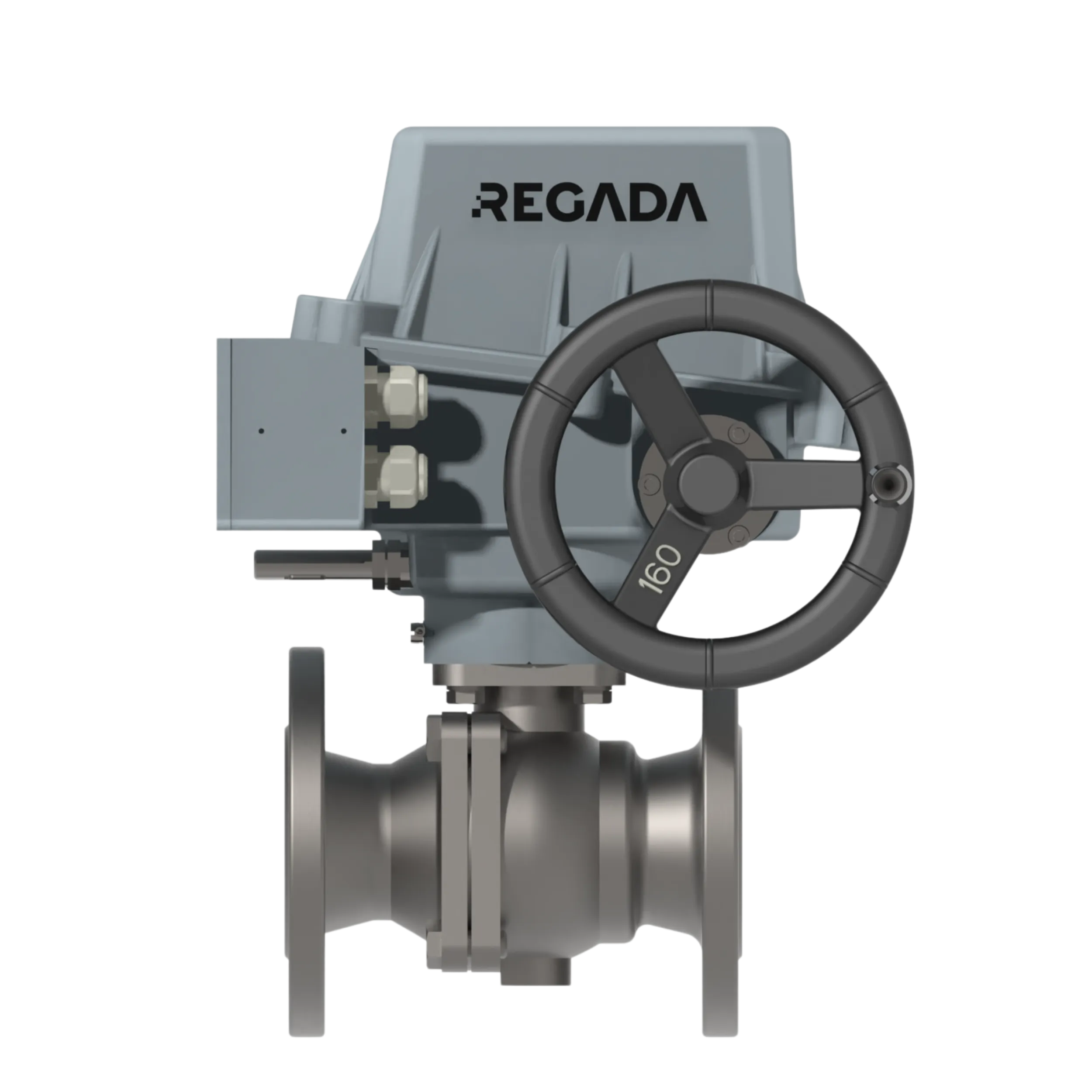

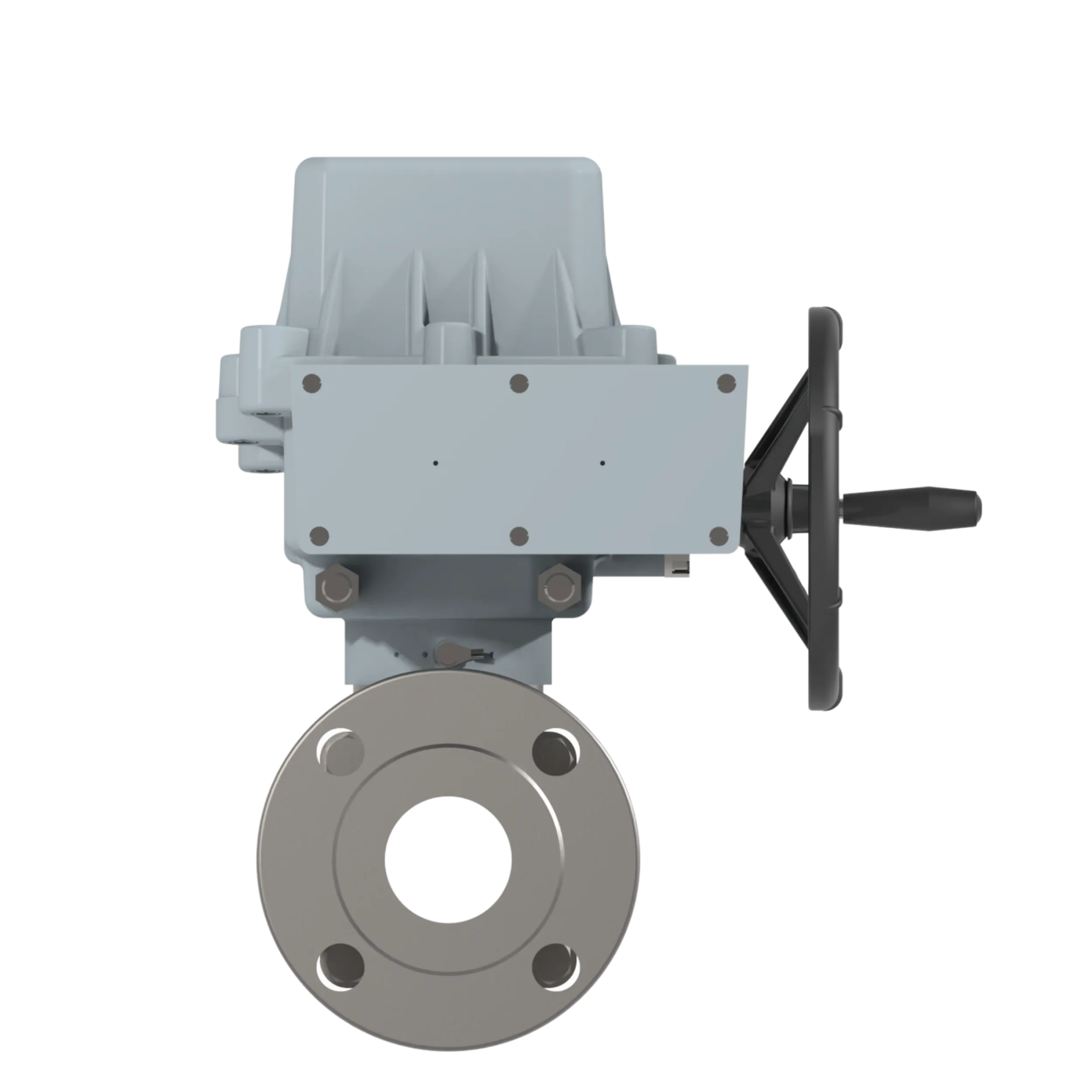

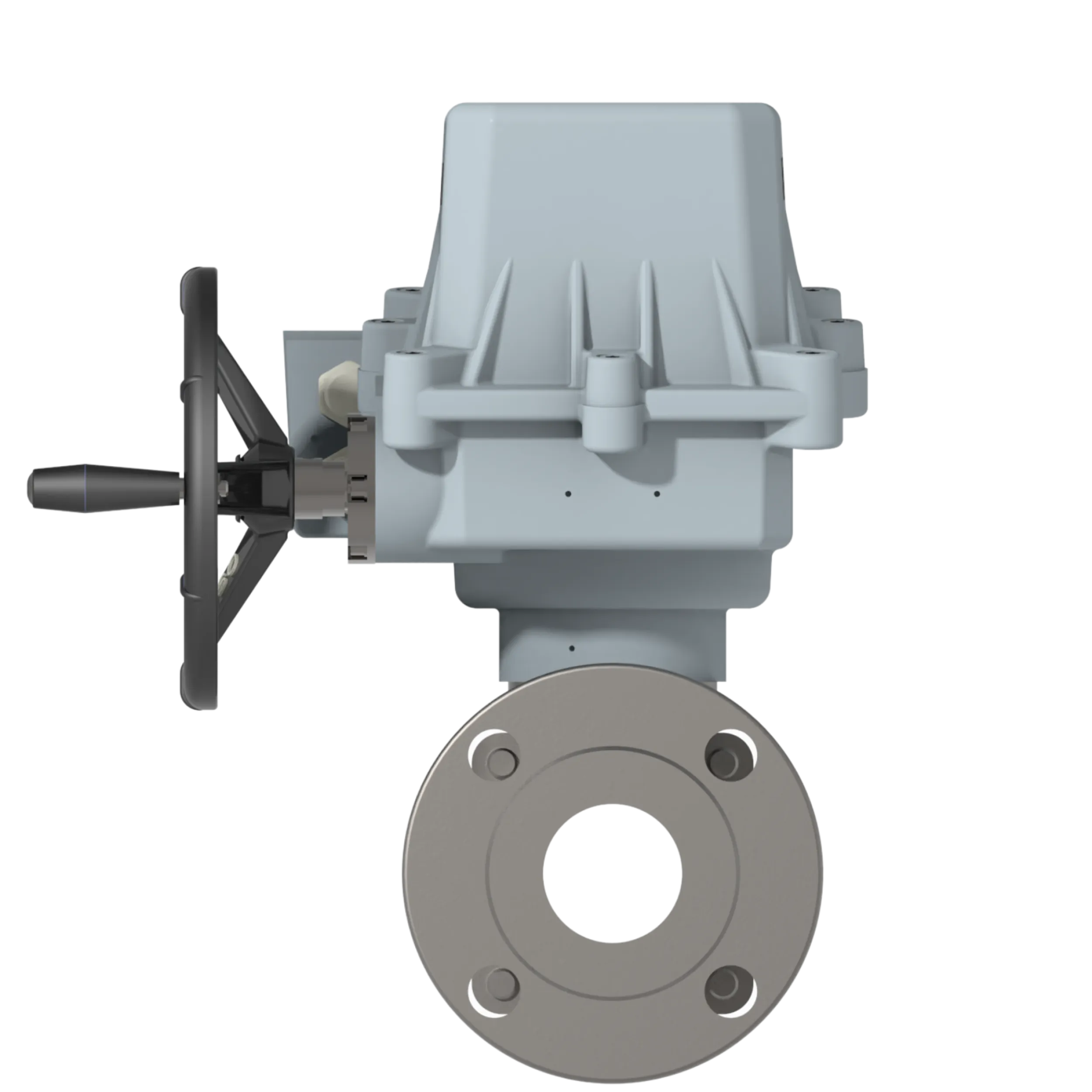

ATEX / IECEx certified ball valves in flanged two-piece design with full bore and integrated 90° stop are the ideal choice for demanding operating conditions and environments with explosive or flammable media. Combined with our REGADA explosion-proof electric actuator, we supply customers with complete assemblies – configured, tested, and ready for immediate installation into pipeline and process systems.

The valves are suitable for gaseous and liquid media such as gasoline, diesel, oil, or water. They are used in steam and oxygen stations as well as in the chemical, petrochemical, pharmaceutical industries, and in facilities operating with hydraulic systems – everywhere reliability and safe operation are critical.

  • Quick installation – valve and actuator are aligned, tested, and ready to use.
  • Precise control and reliable operation – the combination of a high-quality ball valve and a dependable electric actuator ensures smooth and accurate flow control.
  • Flexible solutions – choice of materials and configurations according to application requirements.
  • One point of contact – no need to coordinate with multiple suppliers, REGADA takes care of everything.

You choose the valve, we equip it with the actuator, perform the necessary adjustments, and deliver a complete unit ready for installation. Reliability, time savings, and convenience in one – that’s what REGADA industrial complete solutions stand for.
