Valves Controlled by Electric Actuators
Ball Valves
Two-piece flanged ball valve

Two-piece flanged ball valve

Two-piece flanged ball valve

Body construction: DN 15, DN 300
Working pressure: PN 40
Working temperature: -20 to 230 °C
Tightness: Class A
Construction according to: IN 1983, ISO 17292
Marking according to: IN 19
Connection parameters: RF flanges according to ISO PN40 to DN50, ISO PN16 above DN50, RF flanges according to EN 1092-1 PN16/40
ATEX: group II category 2G/2D Zone 1 and 21, Zone 2 and 22
Materials: Telo – ASTM A216 WCB, resp. ASTM A351 CF8M, Ball – ASTM A351 CF8M, Seal - PTFE TFM 1600 (PMD FF), Shaft seal – PTFE with 25% glass
Leak test: EN 12266-1 class A
Connection length acc: EN 558 row 27 (DIN 3202 F4/F5)
Fire safe according to: ISO 10497:2004

Hi, my name is Marko. I am ready to assist you.

Ing. Marko Štofan

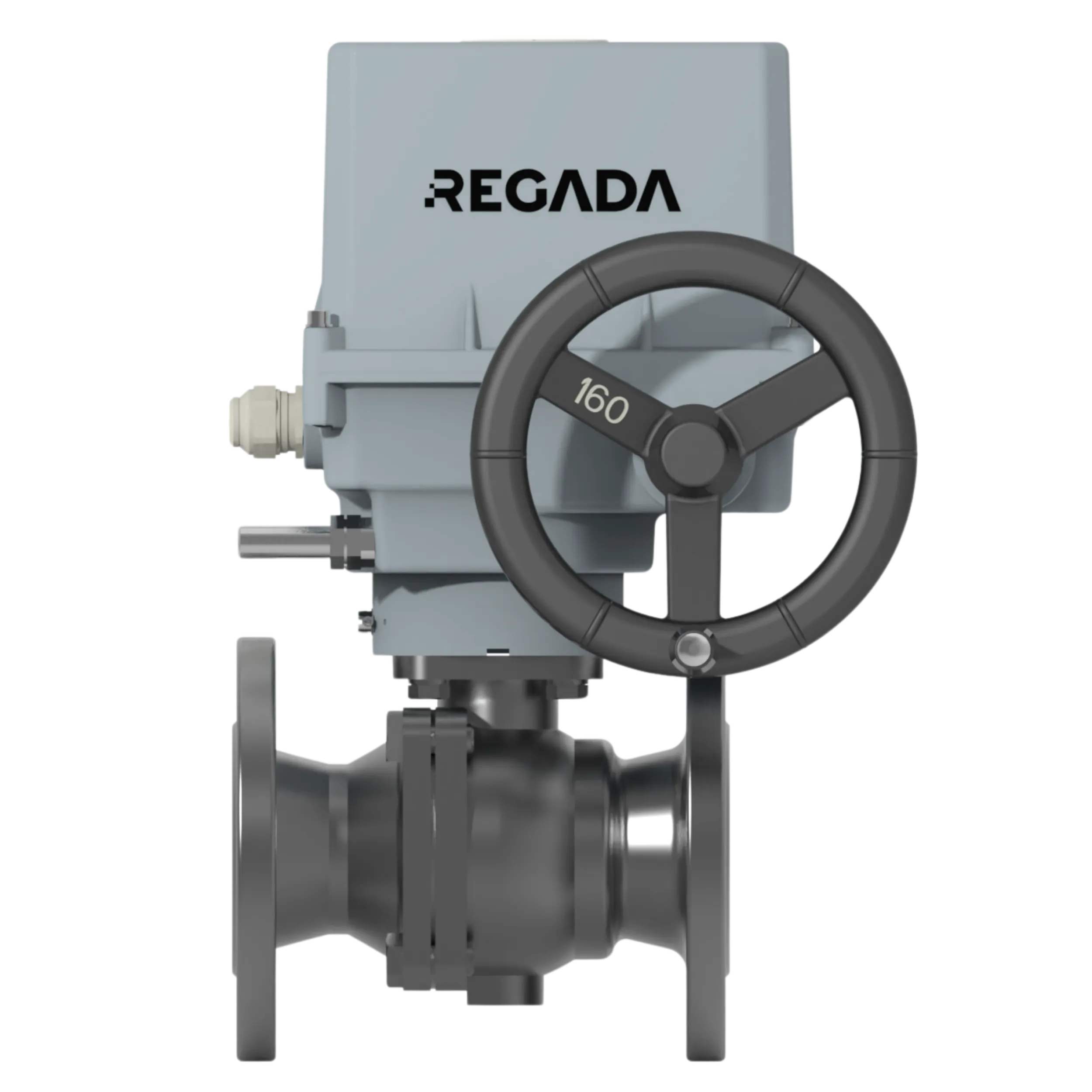

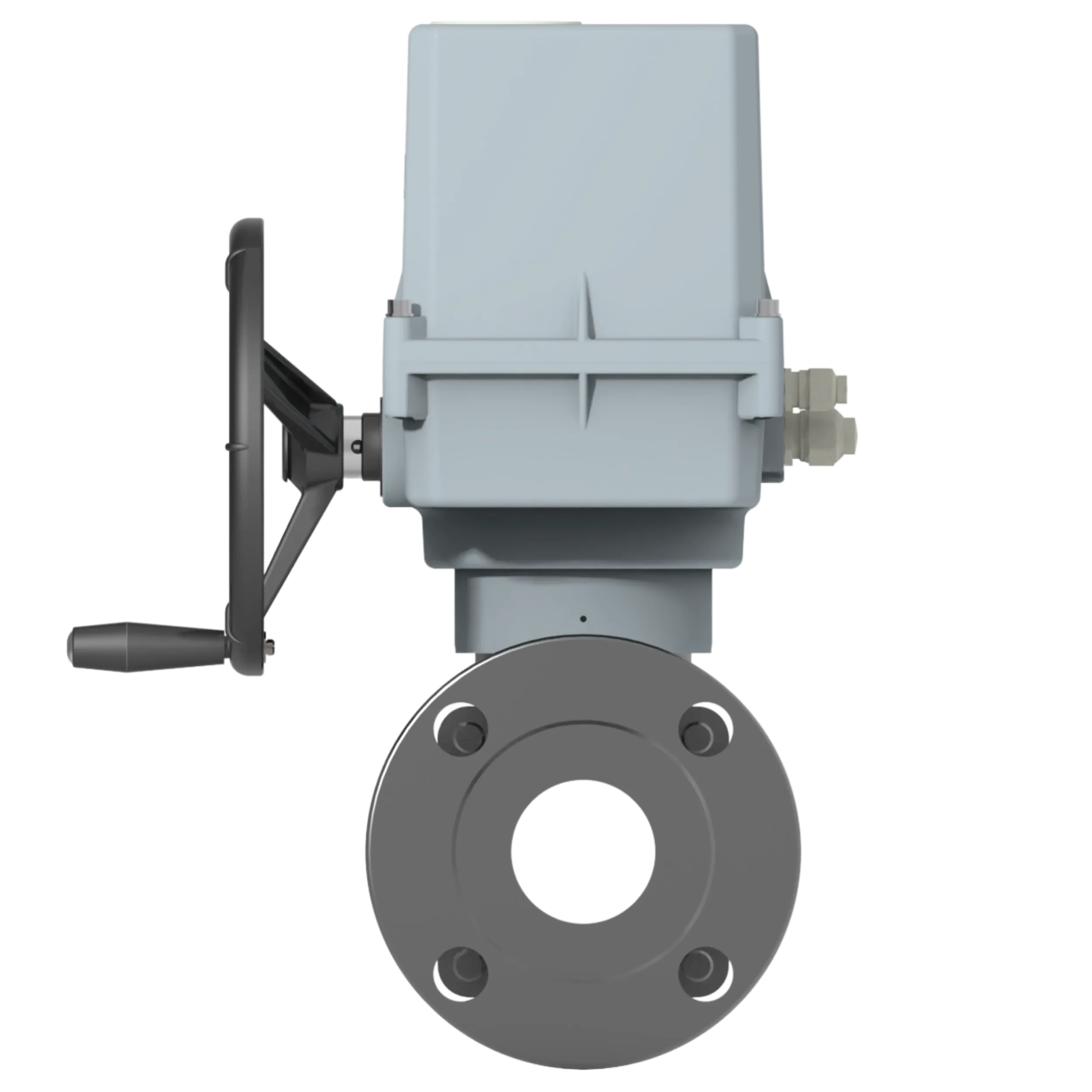

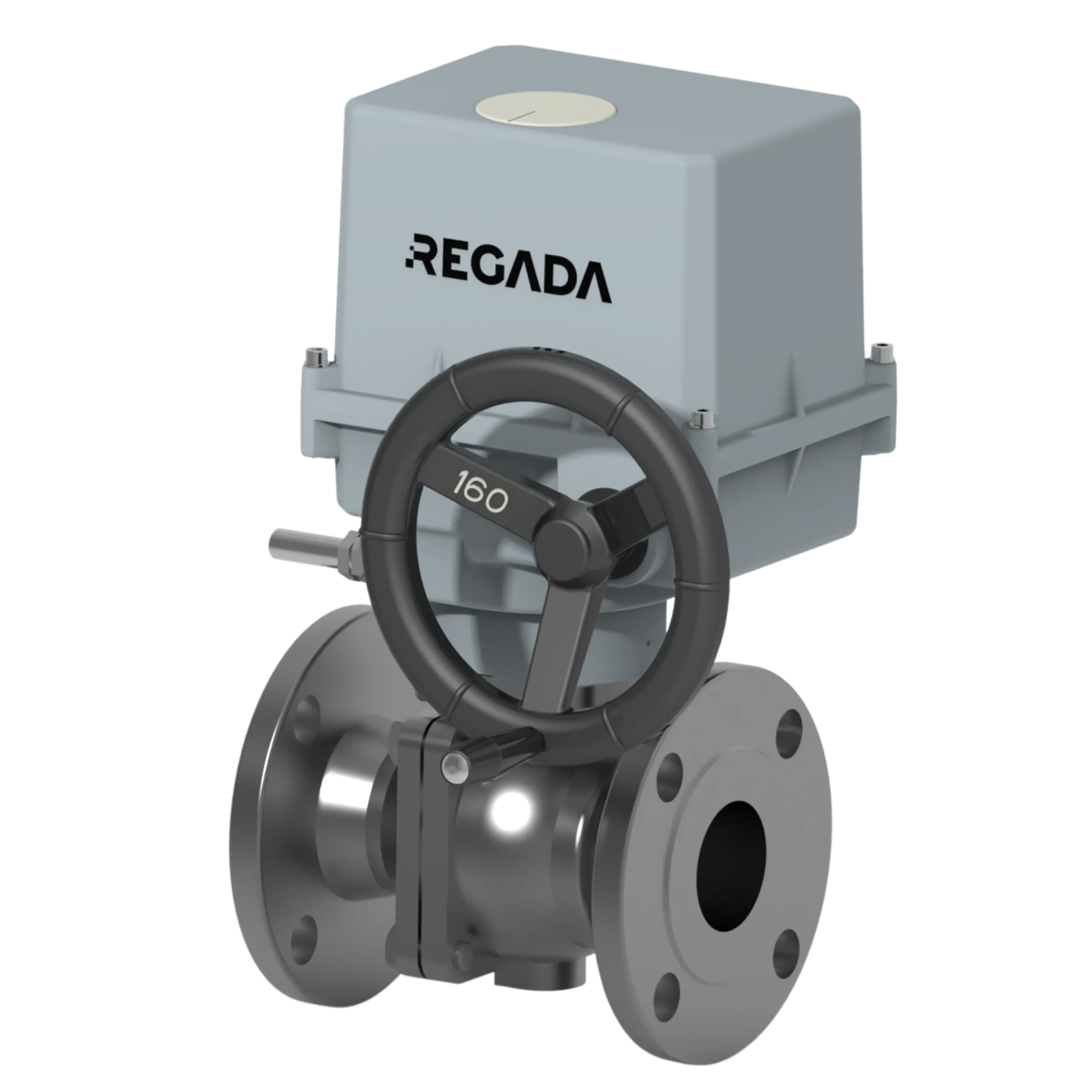

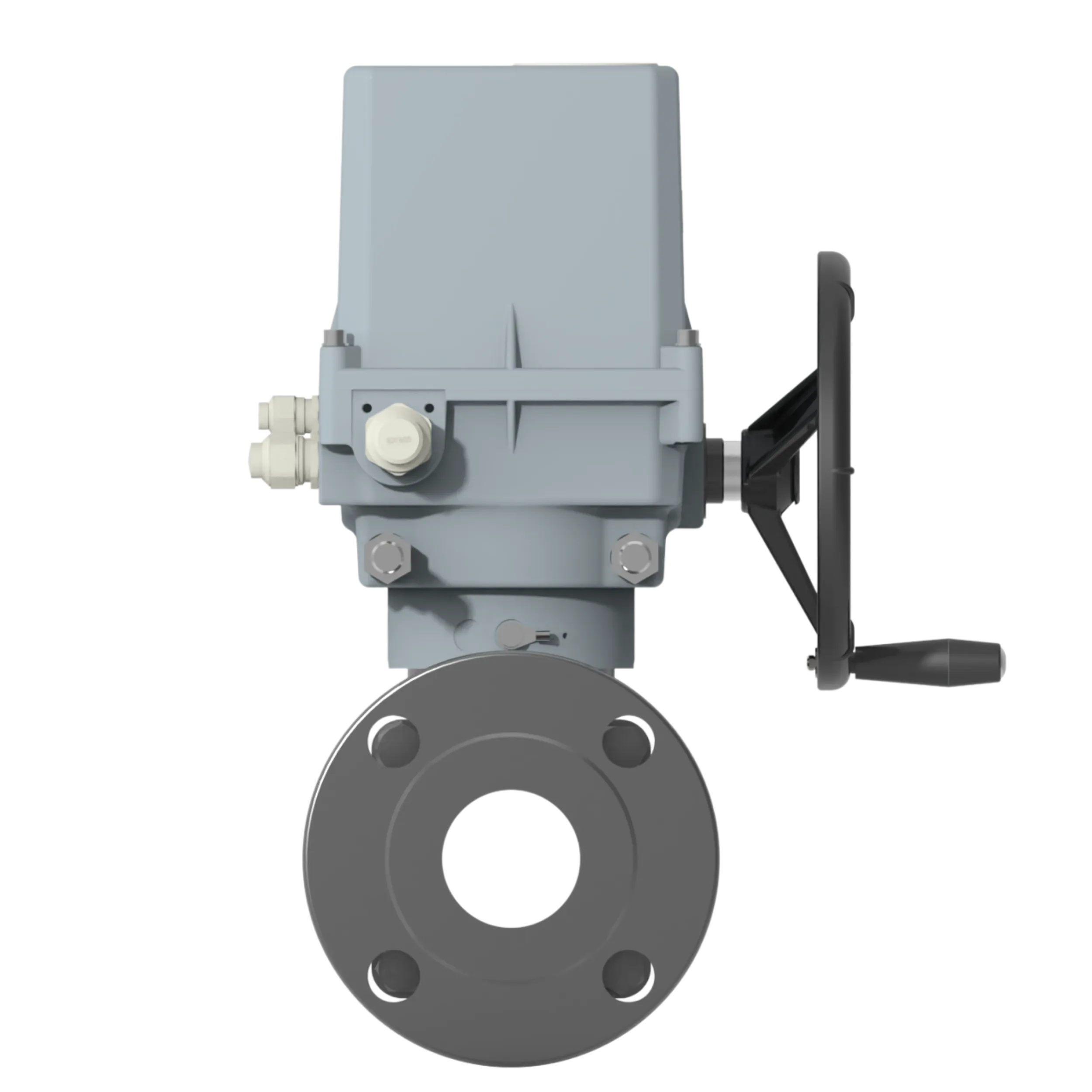

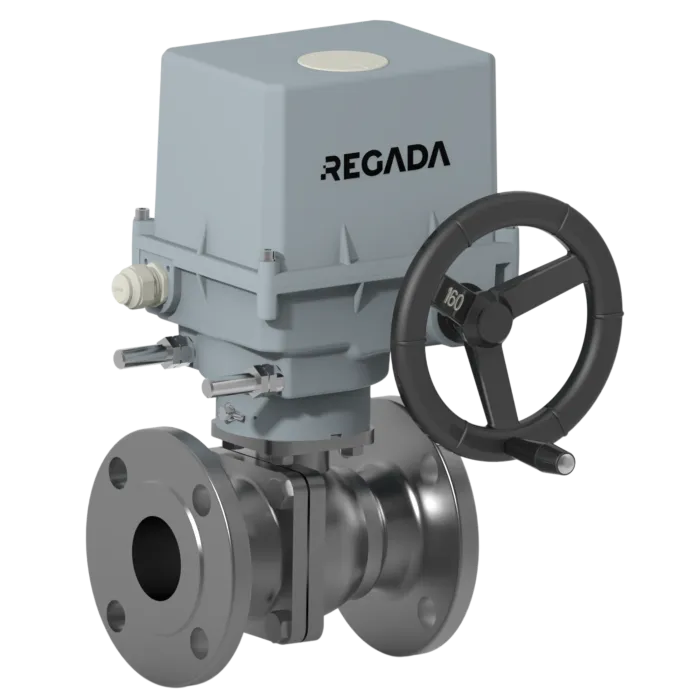

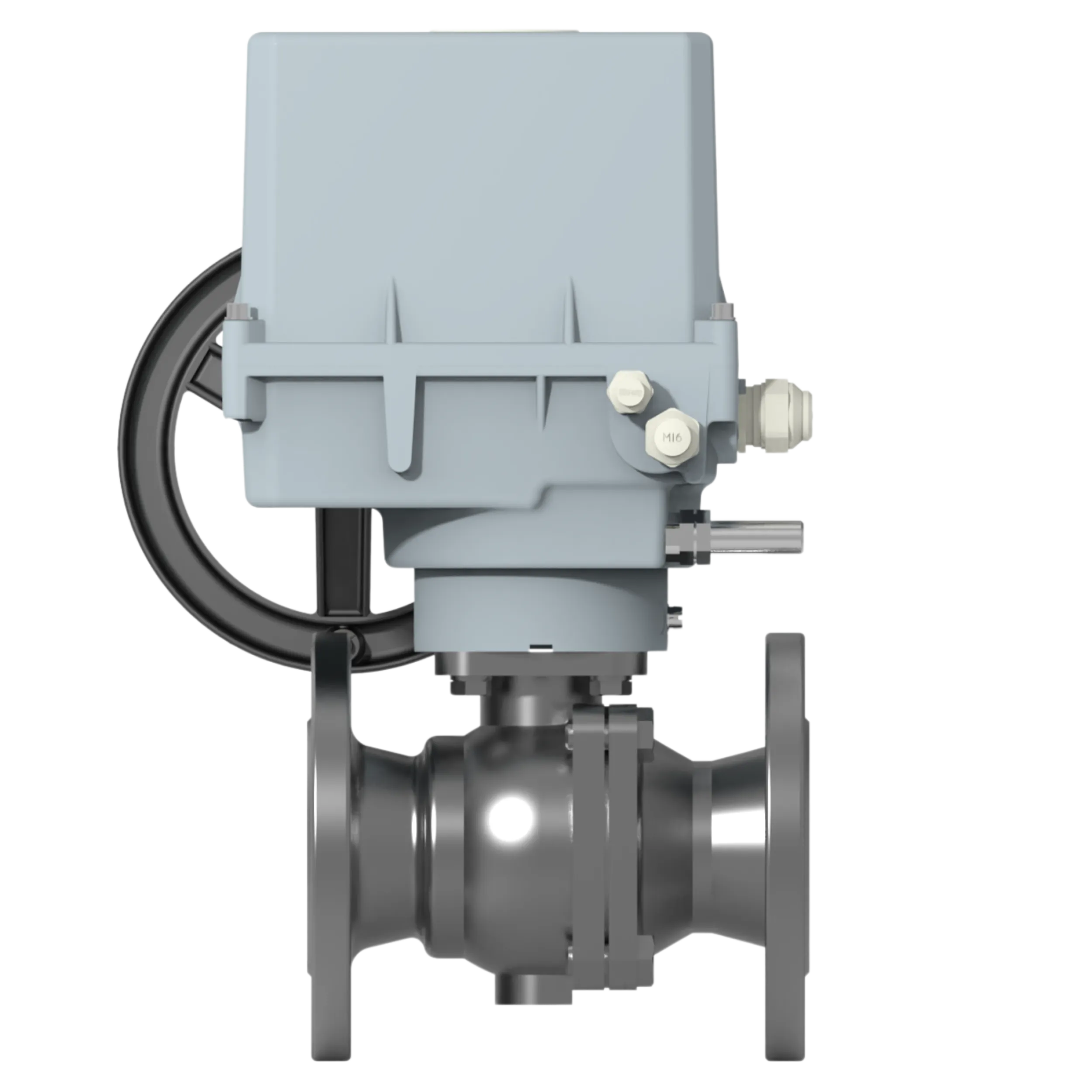

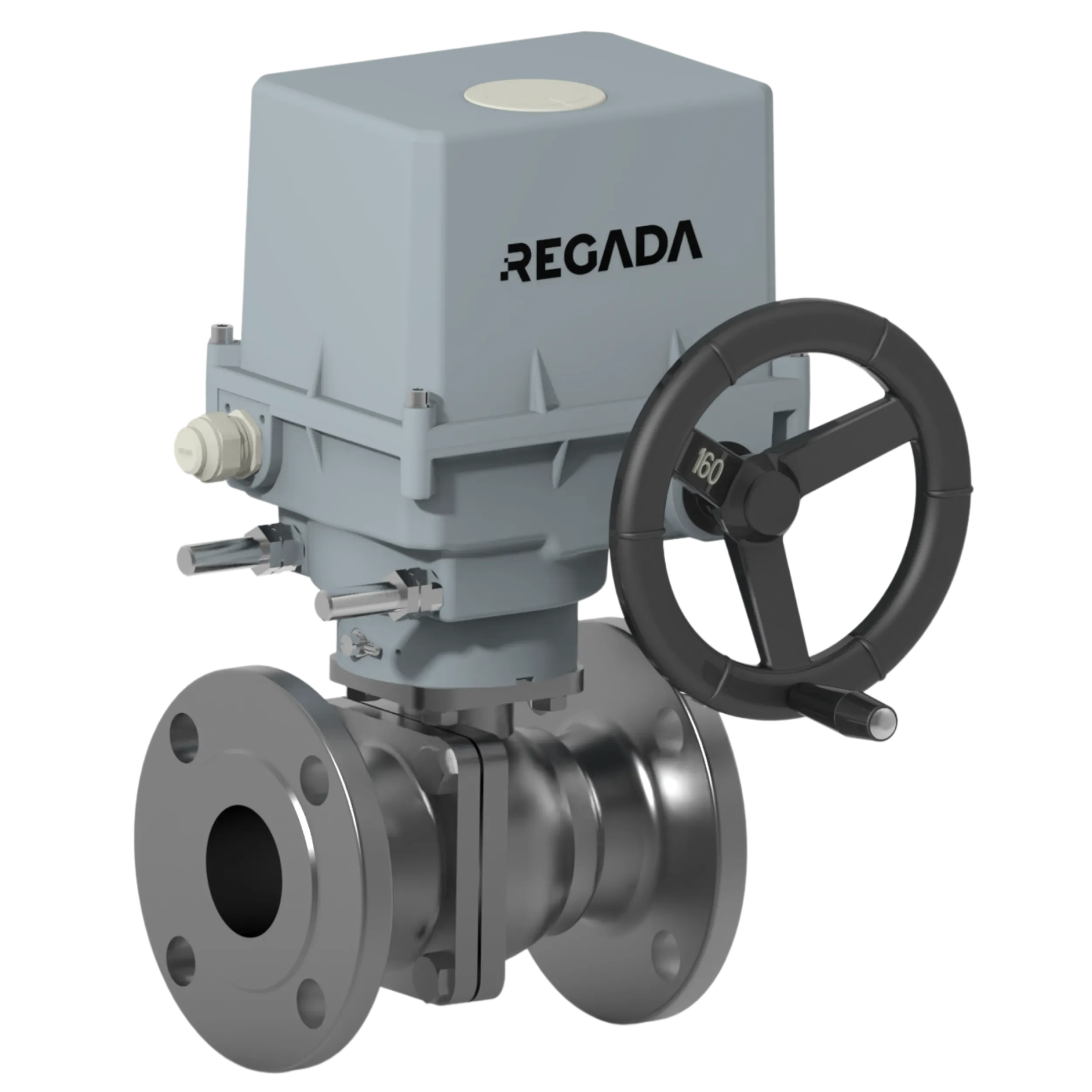

The JV-2FC ball valve is a 2-piece flanged type with full bore design and an integrated 90° stop. Combined with our REGADA electric actuator, we deliver complete assemblies – configured, tested, and ready for immediate installation into pipeline and process systems.

The JV-9108 valves are designed for gaseous and liquid media such as gasoline, diesel, oil, or water. They are used in steam and oxygen stations, as well as in the chemical, petrochemical, pharmaceutical, and food industries – wherever reliability and safe operation are essential.

  • Quick installation – the valve and actuator are aligned, tested, and ready to use
  • Precise control and reliable operation – the combination of a high-quality ball valve and a dependable electric actuator ensures smooth and accurate flow control
  • Flexible solutions – choice of materials and configurations to meet specific application needs
  • One point of contact – no need to deal with multiple suppliers; REGADA takes care of everything

You choose the valve, we equip it with the actuator, perform all necessary adjustments, and deliver a complete unit ready for installation. Reliability, time savings, and convenience in one – that’s what REGADA industrial complete solutions stand for.

More information available on the manufacturer’s website – Bickel & Wolf Bratislava s.r.o.
